PHLTD European Standard 150-400A 380V Single Core Rhinoceros Plug for Stage Lighting, Generators, and High Current Applications

PHLTD socket parameters table

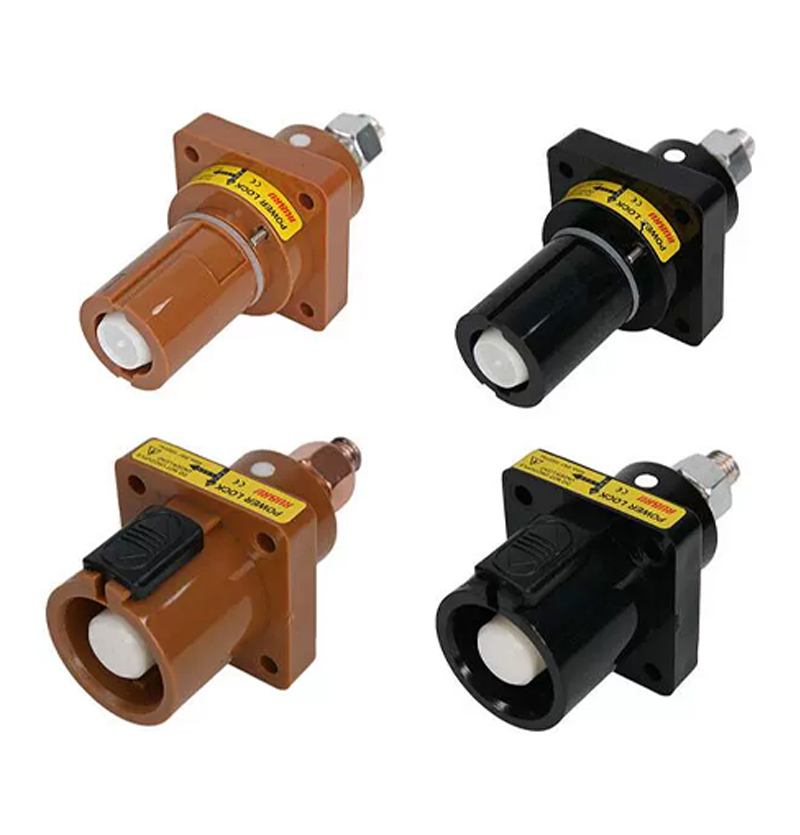

The conductive socket connection point is made of a hard plastic head, which is connected to the wire and the female plug on the socket. Equipped with an M12 stainless steel wire and strontium mother, as well as gasket components for easy wiring. The shell is available in five colors and includes different phase markings to prevent misconnection by ensuring different phases cannot be connected. The top of the guide needle is covered with a hard plastic head to prevent electric shock accidents. IP2X protection rating ensures safe usage, preventing electric shock. The size of the four side screw fixing holes is Dia5.5 mm, making it suitable for open-seat installation.
Model	types of	Corresponding line number	colour	Screw and nut specifications
RPGZ400-BN	Electric socket on the seat	line 1	brown	M12
RPGZ400-BK	Electric socket on the seat	line 2	black	M12
RPGZ400-GY	Electric socket on the seat	line 3	grey	M12
RPGZ400-BU	Electric socket on the seat	zero line	blue	M12
RPGZ400-GN	Electric socket on the seat	Ground wire	green	M12

PHLTD socket parameters table

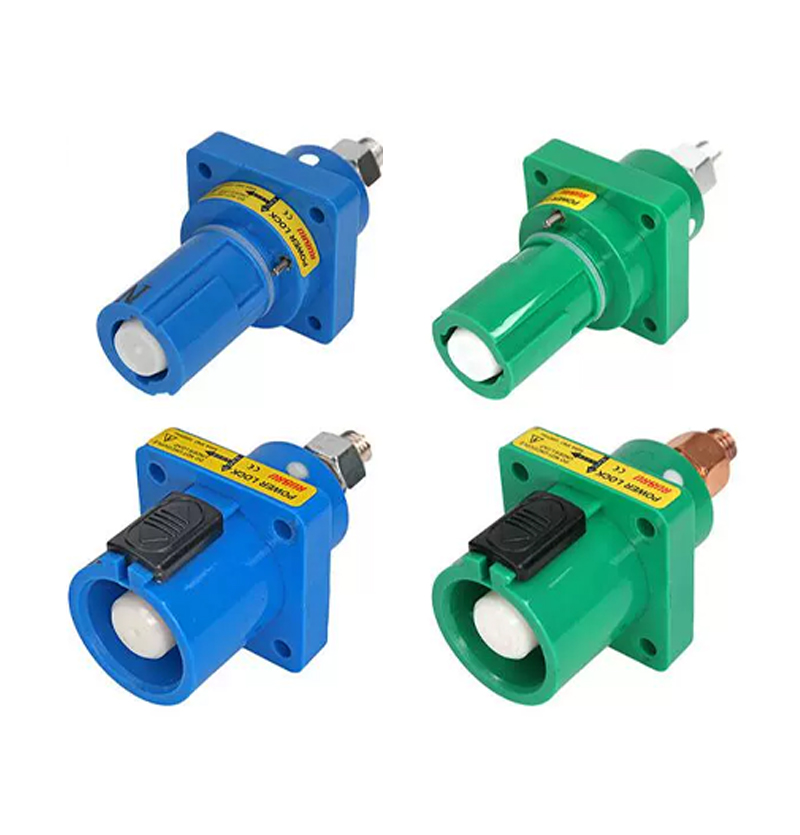

The conductive socket connection point is made of a hard plastic head, which is connected to the male plug on the wire. Comes with an M12 silver wire and nut, along with additional gasket parts for easy wiring and installation. The shell is available in five colors, each with different phase markings, ensuring that different phases cannot be connected to prevent misconnection. The top of the guide needle is covered with a hard plastic head to prevent electric shock accidents. IP2X protection level ensures safe use, protecting against electric shock. The four side screw fixing holes have a diameter of 5.5 mm, suitable for open seat installation. The spring safety pin firmly presses against the groove of the outlet pin to prevent the connection from loosening.
Model	types of	Corresponding line number	colour	Screw and nut specifications
RPMZ400-BN	On board electric broadcasting station	line 1	brown	M12
RPMZ400-BK	On board electric broadcasting station	line 2	black	M12
RPMZ400-GY	On board electric broadcasting station	line 3	grey	M12
RPMZ400-BU	On board electric broadcasting station	zero line	blue	M12
RPMZ400-GN	On board electric broadcasting station	Ground wire	green	M12

PHLTD Online Electrical Male Plug Parameter Table
Applicable current	Applicable voltage	Test maximum voltage	Test maximum voltage	insulation resistance	Lead resistance	Docking dustproof level	Needle material
400A (using 120mmsq single core cable)	1000V	4000V	Up to 35.5kA	>5000M Ohmsat 500 Vac	<0.1m Ohms	IP67	Silver plated brass
External material	Fixed tip material	operation temperature	wiring method	Wire clamping torque	Number of pulling cycles	Flame retardant grade	authentication
Impact resistant and flame-retardant plastic	plastic steel	-45-85°C	Two stop payment screws are fixed	10.5N/meter (minimum value)	>500 times	UL94.VO	CE&ROHS certification

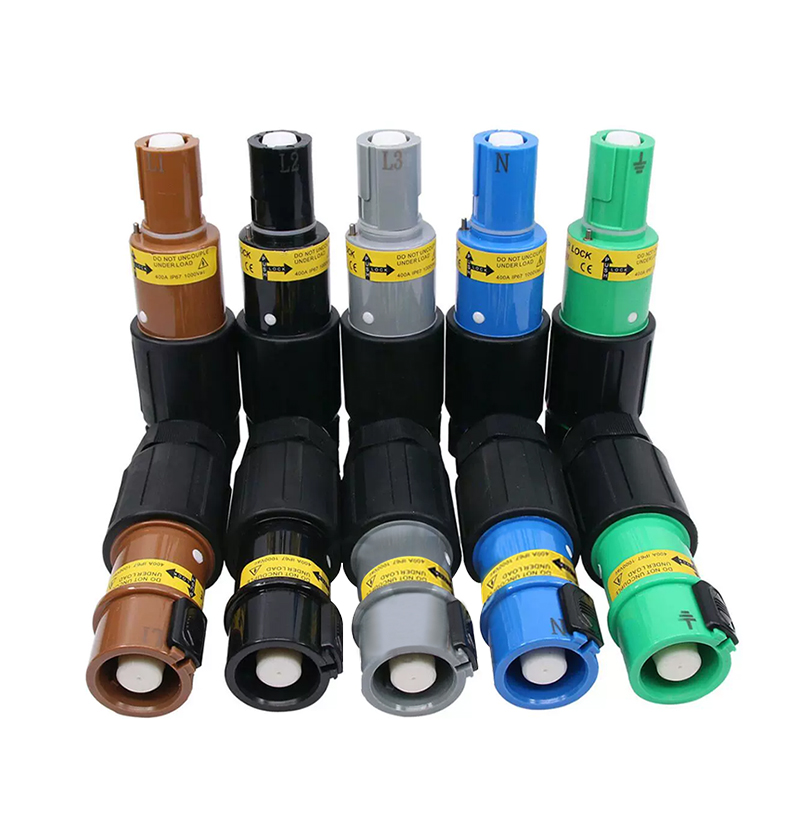

The conductive plug connection point consists of a hard plastic head, connected via the slot wire on the plug. Equipped with an anti-slip rubber handle for easy handling. The shell is available in five colors with distinct phase markings, ensuring different phases cannot be connected to prevent misconnection. The top of the guide pin is covered with a hard plastic head to prevent electric shock accidents. IP2X protection rating ensures safe use, preventing electric shock. The M40 cable head is fitted with rubber rings of 18mm and 26mm inner diameters, accommodating power cords with diameters between 19mm and 28mm. The standard packaging includes an R120 terminal metal sleeve: 16.50mm (inner diameter) x 32mm (length), suitable for 120mm² wire. Includes short plastic steel fixing pins (do not reuse the fixing pins to avoid the risk of electric shock after damage).
Model	types of	Corresponding line number	colour	Suitable for wire diameter	Wire head size	R120 silver plated copper terminal Set to accommodate up to the maximum diameter 16.50mmsg copper core
RPG400-BN	Online electrical plug	line 1	brown	120mmsq wire diameter	M40/1928mm
RPG400-BK	Online electrical plug	line 2	black	120mmsq wire diameter	M40/1928mm	MV40 cable head provides inner diameter 18&26mm rubber Inner lining, compatible with various sizes of wire diameters
RPG400-GY	Online electrical plug	line 3	grey	120mmsq wire diameter	M40/1928mm
RPG400-BU	Online electrical plug	zero line	blue	120mmsq wire diameter	M40/1928mm	Seat mounted electrical male plug with fixed pin For safety reasons. Please do not repeat Using fixed tips
RPG400-GN	Online electrical plug	Ground wire	green	120mmsq wire diameter	M40/1928mm

PHLTD Online Female Plug Parameter Table
Applicable current	Applicable voltage	Test maximum voltage	Test maximum voltage	insulation resistance	Lead resistance	Docking dustproof level	Needle material
400A (using 120mmsq single core cable)	1000V	4000V	Up to 35.5kA	>5000M Ohmsat 500 Vac	<0.1m Ohms	IP67	Silver plated brass
External material	Fixed tip material	operation temperature	wiring method	Wire clamping torque	Number of pulling cycles	Flame retardant grade	authentication
Impact resistant and flame-retardant plastic	plastic steel	-45-85°C	Two stop payment screws are fixed	10.5N/meter (minimum value)	>500 times	UL94.VO	CE&ROHS certification
The conductive plug connection point consists of a hard plastic head, connected via the slot wire on the plug. It comes with an anti-slip rubber handle for easy use. The shell is available in five colors and features different phase markings, ensuring that different phases cannot be connected to prevent misconnection. The top of the guide needle is covered with a hard plastic head to prevent electric shock accidents. The IP2X protection rating ensures safe usage, preventing electric shocks. The M40 cable head is equipped with rubber rings with inner diameters of 18mm and 26mm, designed to fit power cords with diameters between 19mm and 28mm. The standard packaging includes an R120 terminal metal sleeve: 16.50mm (inner diameter) x 32mm (length), for use with 120mm² wire. The spring safety pin presses firmly into the groove of the outlet pin to prevent the connection from loosening. It comes with short plastic steel fixing tips (please do not reuse these tips to avoid the risk of electric shock after they are damaged).
Model	types of	Corresponding line number	colour	Suitable for wire diameter	Wire head size	R120 silver plated copper terminal Set to accommodate up to the maximum diameter 16.50mmsg copper core
RPM400-BN	Online female plug	line 1	brown	120mmsq wire diameter	M40/1928mm
RPM400-BK	Online female plug	line 2	black	120mmsq wire diameter	M40/1928mm	MV40 cable head provides inner diameter 18&26mm rubber Inner lining, compatible with various sizes of wire diameters
RPM400-GY	Online female plug	line 3	grey	120mmsq wire diameter	M40/1928mm
RPM400-BU	Online female plug	zero line	blue	120mmsq wire diameter	M40/1928mm	Seat mounted electrical male plug with fixed pin For safety reasons. Please do not repeat Using fixed tips
RPM400-GN	Online female plug	Ground wire	green	120mmsq wire diameter	M40/1928mm

Connector Overview

• Rated Voltage: 380V, designed to meet the high-power electrical demands of industrial-grade equipment and stage lighting.
• Rated Current: Supports current transmission from 150A to 400A, ensuring stable operation in high-demand environments such as stage lighting and generator vehicles.
• Plug Type: Features a rhinoceros head design, known for exceptional durability and ease of use, allowing for quick and reliable connections and disconnections.

Design & Material

• Single Core Design: Minimizes energy loss, enhances transmission efficiency, and simplifies both installation and maintenance.
• Material Selection: Utilizes high-quality conductive and insulating materials to ensure the safety and reliability of electrical connections.
• Durability of Insertion & Unplugging: Capable of withstanding up to 10,000 insertions and removals, making it suitable for high-frequency use.

Application Scenarios

• Stage Lighting: Ideal for large-scale concerts, theater performances, and other events that require high-power stage lighting. Provides stable high-current transmission for bright, high-quality lighting.
• Generator Vehicles: Perfect for providing reliable electrical connections in outdoor temporary power supplies, emergency rescue operations, and other on-site applications, ensuring continuous power supply.
• Industrial Applications: Designed to meet the need for stable and reliable power supply in industrial environments such as factories and workshops, ensuring smooth and efficient operation of production lines.
• Construction Sites: Facilitates easy and quick power connections on construction sites, improving construction efficiency with frequent equipment movement and power-ups.
